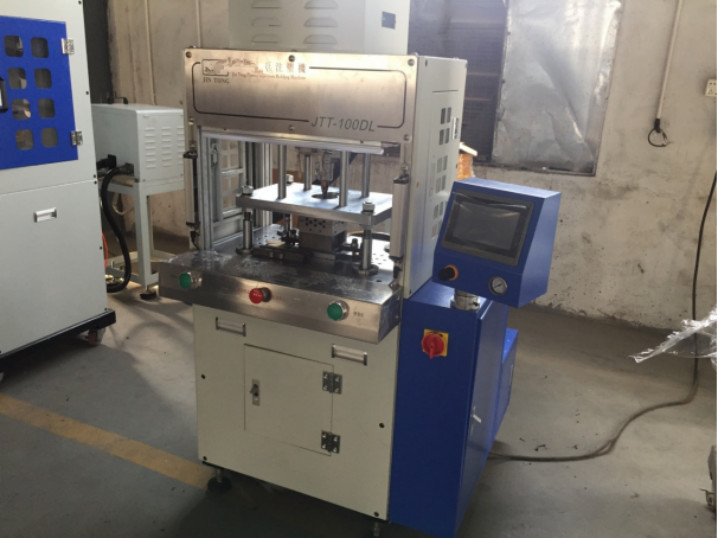

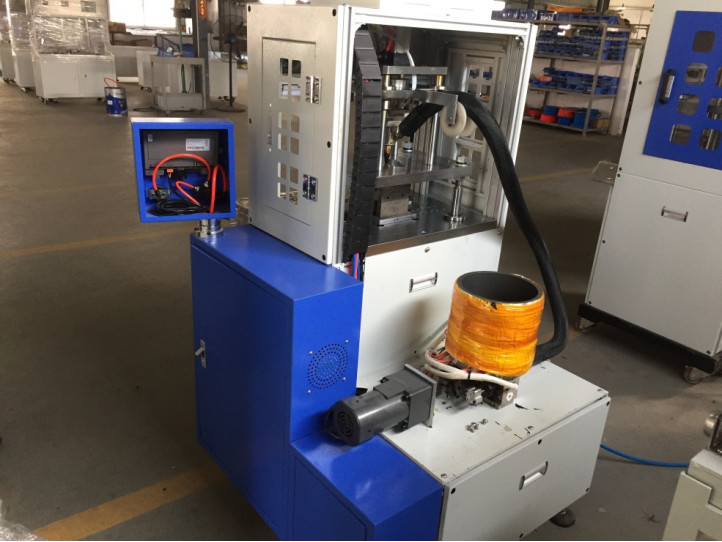

Best Price plastic injection moulding machine for USB circuit board electronic components

Name: Best Price plastic injection moulding machine for USB circuit board electronic components
Brand: JXC/TWSL
Price: 7000 USD

Buy cheap Best Price plastic injection moulding machine for USB circuit board electronic components product

Brand Name : JXC/TWSL

Model Number : JTT-100

Certification : CE,ROHS

Place of Origin : Shenzhen,China

MOQ : 1 Set

Price : USD 7000-8500

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 Set/Month

Delivery Time : 7-10 workdays

Packaging Details : Wooden Carton

Condition : New

Warranty : 1 Year

After-sales service provided : Video technical support,Field maintenance and repair service

Automatic : Semi-automatic

Weight : 500KG

Dimension(l*w*h) : 800 *750*1670mm

Voltage : 200-240VAC/1 Phase/50 or 60Hz

Color : Sliver

Material : Stainless Steel

Melting Tank : (3 Liter)*1

Temperature range : 70℃-260℃

Contact Now

Horizontal type low pressure injection machine for Mobile Phone Battery Producing Machine

Best Price plastic injection moulding machine for USB circuit board electronic components

Technical Parameters:

plastic injection blow moulding machine

	Model		JTT-100
injection system	cylinder Diameter/length	mm	Φ8*1600
	Injection Pressure	kg/cm2	1.5-4
	Max shot weight	g	100
	Nozzle Stroke	mm	50
	Number of Temperature Control	-	1+2
	Hopper Capacity	L	6
clamping system	Clamping Force	tons	1
	Opening Force	tons	0.4
	Platen Size	mm	220*330
	Distance Between Tie Bar	mm	390
	Min Mold Height	mm	20
	Opening Stroke	mm	150
	Max Open Daylight	mm	200
	Ejector Force	tons	0.1
	Ejector Stroke	mm	10
air pressure electric system	Into the main pressure	kgf/cm2	5-7
	Voltage	V	220
	Motor power	kw	0.4
	Total Power	kw	3.4
	Working power	KW	0.8
other	Machine Weight	tons	0.5
	Machine Dimension	m	0.80.751.67
	Machine Dimension	m	0.80.751.67

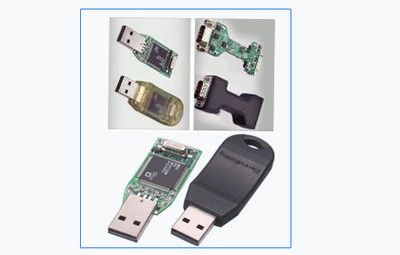

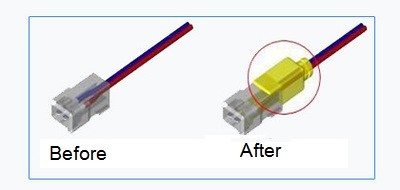

Scop of application

Best Price plastic injection moulding machine for USB circuit board electronic components

Shipping

Best Price plastic injection moulding machine for USB circuit board electronic components

Our Service

Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

Best Price plastic injection moulding machine for USB circuit board electronic components

Looking forward to establish good business relationship with you in the new future,any question,please contact me:

Cel/Wechat/whatsapp:+86-13543252590
Email: jxcequipment(at)163.com
Contact:Ms.Tina | Sales Manager
